OAK 4 SoM

$349.00 VAT incl.

We will require an NDA before delivery.

The OAK 4 SoM features the Robotics Vision Core 4 and a 6-core ARM CPU. It is ideal for use in industrial automation, robotics, and security systems.

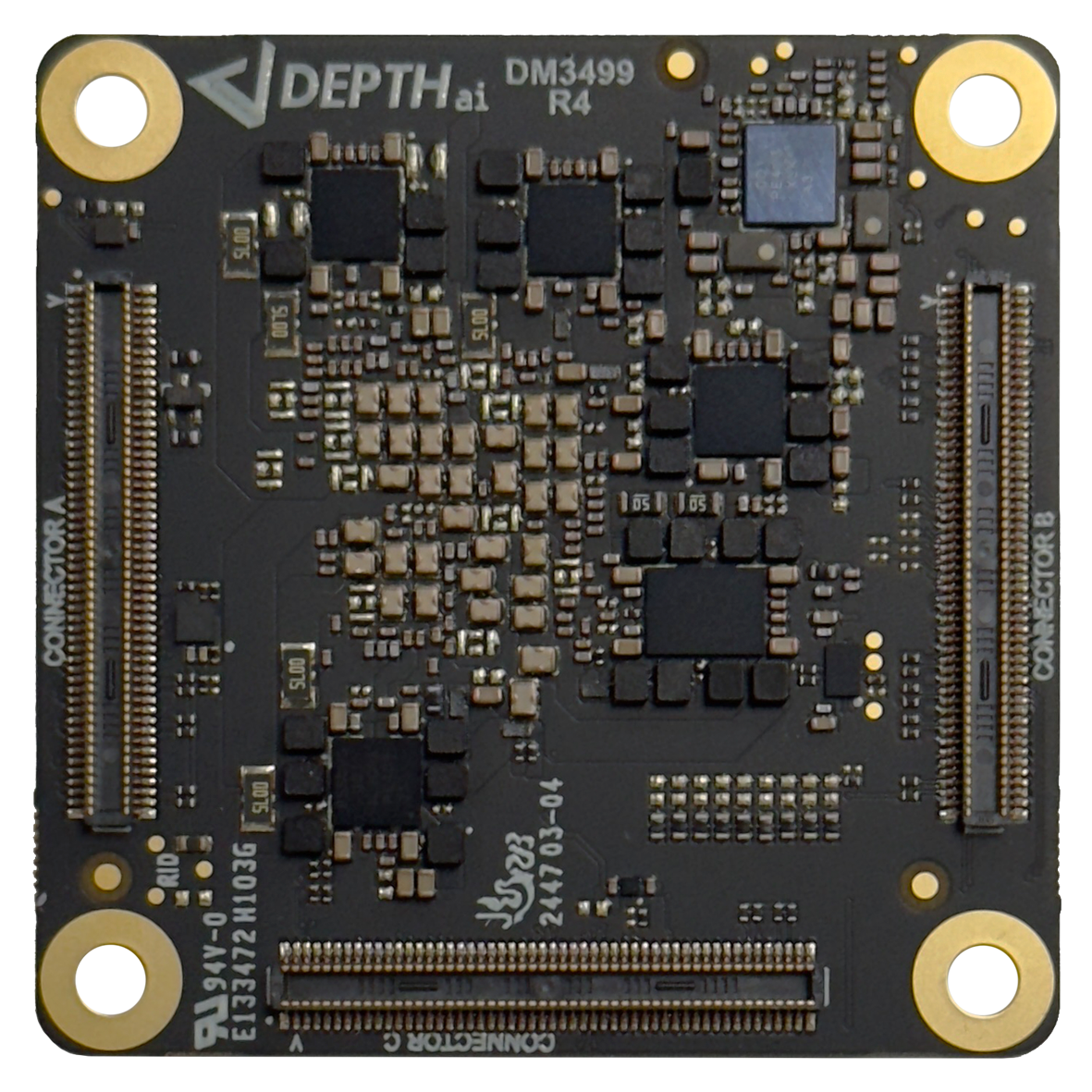

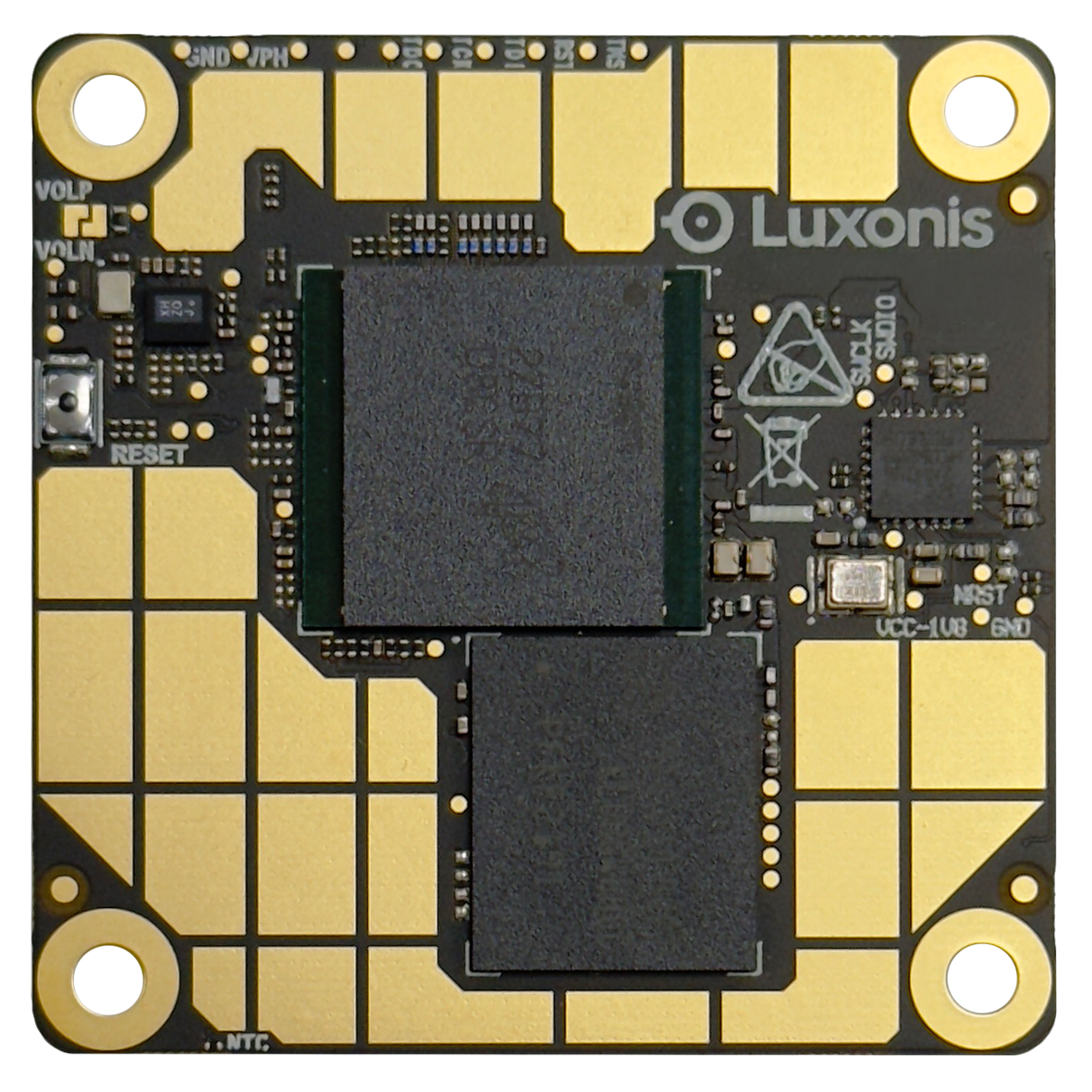

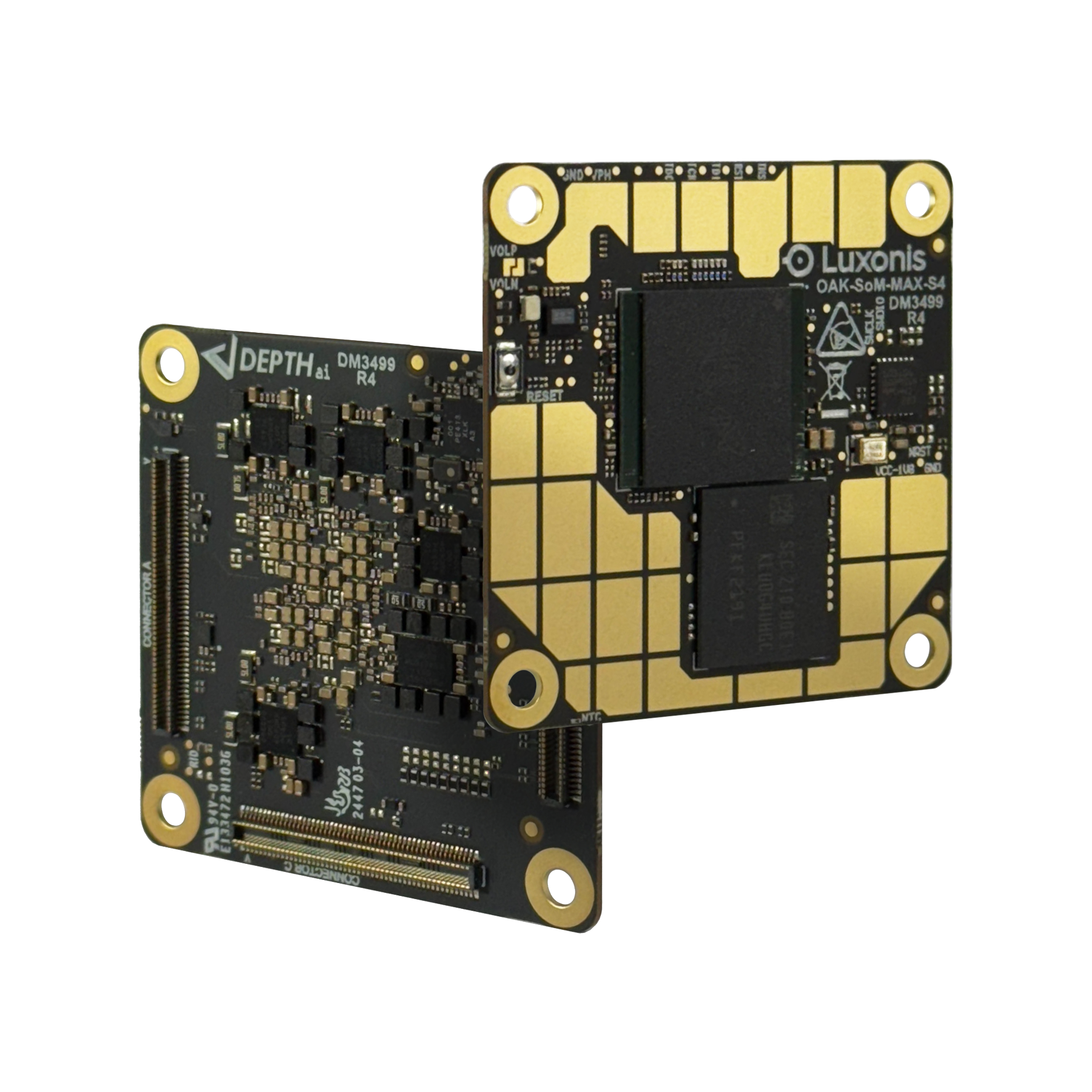

OAK 4 System on Module (SoM) allows integration into top-level systems with a need for a high-performance, real-time edge AI and depth perception.

Specifications:

Interfaces with the system through three 10-gbps-rated 100-pin connectors (DF40C-100DP-0.4V(51))
Connectors: 3x 100-pin mezzanine connector
MIPI lines: 2x 4-lane and 4x 2-lane MIPI lines. Max 5 concurrent streams.
RAM: 8GB
Storage: 128GB
Multiple GPIOs, I2C/I3C, SPI, UART interfaces
Supporting SD-card
2x PCIe (eg. for Ethernet chip)
FSYNC/STROBE outputs (from STM MCU)
DisplayPort (untested)
USB 3.2 Gen 2

Description
Package includes

Description

Main features:

OAK 4 SoM is built on top of the RVC4.

6-core ARM CPU running Linux (Kernel 5.15)
AI: 52 TOPS
- DSP: 48 TOPS (INT8) / 12 TOPS (FP16)
- GPU: 4 TOPS (FP16)
Computer vision: Stereo depth, frame warp engine, optical flow, feature detection, description matching, template matching
ISP: 5 concurrent camera streams, HDR, EIS, 3A, up to 3x 8K @ 30FPS
Encoding: 4K @ 240FPS decoding, 4K @ 120FPS encoding for H264 and H265. Decoding also supported for VP9, AV1
Dimensions: 40x40x5 mm
Weight: 5g

Package includes

OAK 4 SoM
Heatsink
Screws
