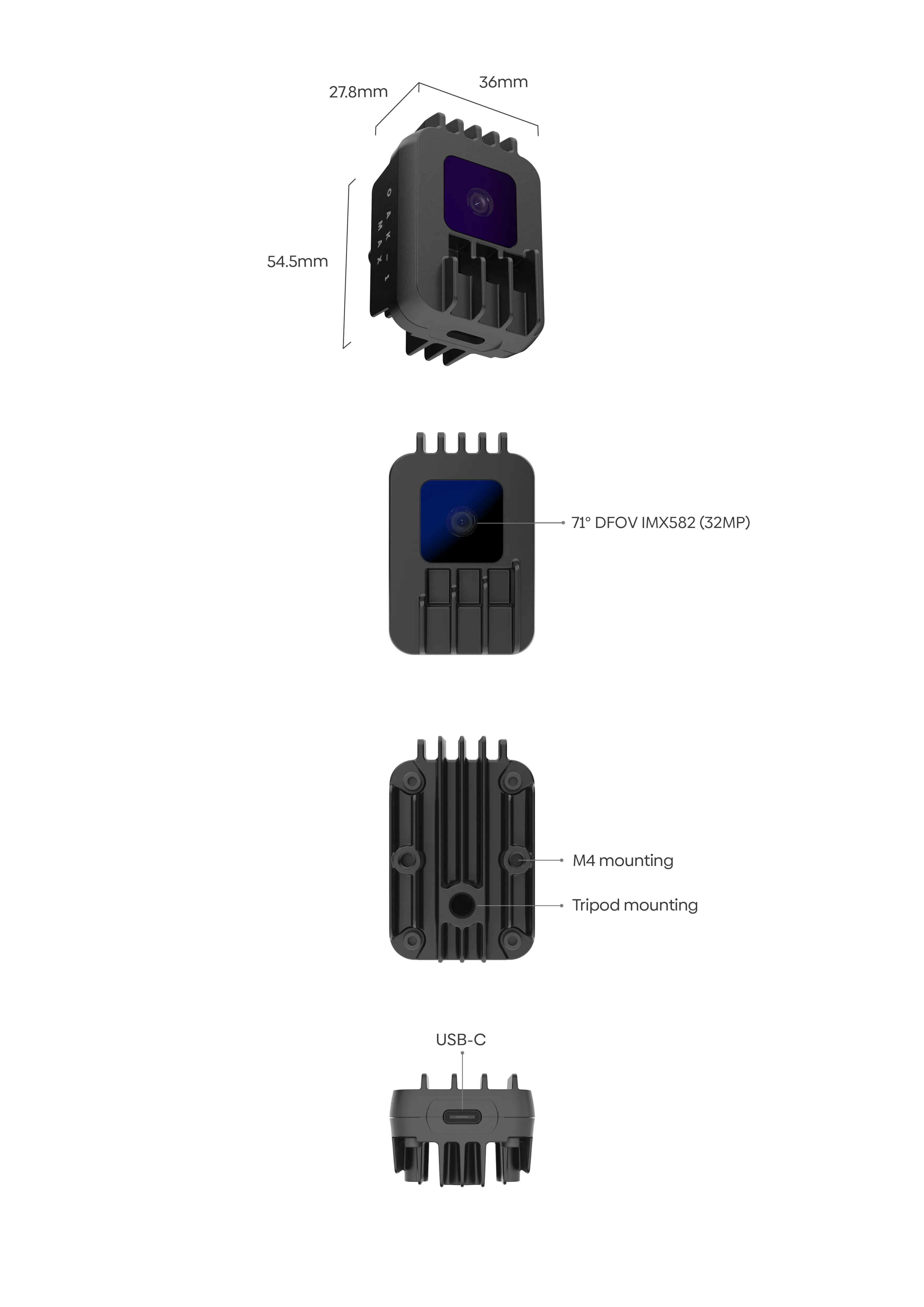

- Product diagram
- Technical Specifications
- Package includes
- Files
The OAK-1 MAX is a 32MP AI camera that features on-device Neural Network inferencing and Computer Vision capabilities. It can capture high-resolution images, run custom AI models, and perform advanced computer vision tasks. It uses USB-C for both power and USB3 connectivity.
For a smooth getting started experience with the USB camera, we recommend following USB deployment guide.
This OAK device is built on top of the RVC2 architecture, with main features being:
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- Run any AI model, even custom architectured/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- Object tracking: 2D tracking with ObjectTracker node
- Power consumption up to 5W. For more information check the technical specification.
- Industrial grade aluminum housing with Front Gorilla Glass
- 1/4" tripod mount
- Dimensions: 36x54.5x27.8 mm
- Weight: 53.1g
Camera Specifications
OAK-1-MAX uses 32MP IMX582 sensor with HDR support. Sensor Specifications| Color camera | |
|---|---|
| Sensor | IMX582 |
| DFOV / HFOV / VFOV | 71° / 45° / 55° |
| Resolution | 32MP (5312x6000) |
| Focus | Auto-Focus: 20cm - ∞ |
| Max Framerate | 42 FPS(4K), 10FPS full res. |
| Spectral range | Visible only |
| Shutter Type | Rolling |
| Sensor size | 1/2" |
| F-number | 2.2 ± 5% | Effective Focal Length | 4.74mm |
| Pixel size | 0.8µm |
Power consumption
Most of the power is consumed by the RVC2, so the power consumption mostly depends on the workload of the VPU:
- Base consumption + camera streaming: 2.5W - 3W
- AI subsystem consumption: Up to 1W
- Stereo depth pipeline subsystem: Up to 0.5W
- Video Encoder subsystem: Up to 0.5W
So the total power consumption can be up to ~5W if you are using all the features at 100% at the same time. To reduce the power consumption, you can reduce FPS of the whole pipeline - that way, subsystems won’t be utilized at 100% and will consume less power.
Operating characteristics
The ambient operating temperature of RVC2 based devices is between -20°C and 50°C when fully utilizing the VPU. To find out more, see our operative temperature range documentation.
The package contains:
- OAK-1-MAX camera
- Cable USB-CA-1m
- Cleaning cloth
